    SYNCLINE DR92026 Polygon
    Recommended
    MSRP
    $7,999
    Where to Buy
    $7,499

    6% off At Bikes Online

    Category
    		Trail
    9.7
    Frame
    		Carbon
    		Fox Factory Float 34
    		Fox Float SL Factory
    Wheels
    		Carbon
    Wheel Size
    		29″
    		Shimano XTR Hydraulic Disc
    		Dura-Ace Di2, XTR
    Drivetrain
    		1 × 12 Electronic
    Suspension
    		Full
    Front Travel
    		120mm
    Rear Travel
    		110mm
    Brand Site

    polygonbikes.com

    Summary

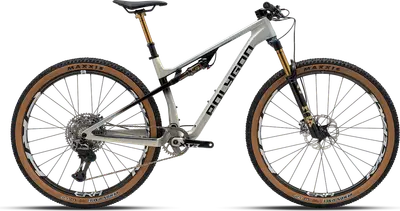

    		The Polygon SYNCLINE DR9 is a 29″ carbon frame full suspension trail bike with ultra high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    SYNCLINE DR9
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    SYNCLINE DR9

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    SYNCLINE DR92026 Polygon
    Frame

    carbon

    Hanger Standard: UDH

    Tire Clearance: 2.35"

    Color: White Silver

    Fork

    FOX 34 SL FACTORY SERIES 120mm TRAVEL

    Travel: 120mm

    Spring Type: Air

    Shock

    FOX FLOAT SL FACTORY SERIES, E2E: 165x40mm

    Travel: 110mm

    Bottom Bracket

    SHIMANO BB93

    Headset

    FSA NO.69/59/SRS/DUAL, S.H.I.S. IS 52/28.6 | IS 52/40

    Stem

    FSA KFX 2-Bolt Stem, 70mm Length, 31.8mm Clamp, -20° Rise

    Handlebar

    FSA KFX FLAT CARBON, W: 760mm, BB: 31.8mm, R/D:-

    Saddle

    FIZIK TERRA ARGO X7, R: CR-MO ø 7mm

    Seatpost

    FOX TRANSFER SL FACTORY SERIES 120mm TRAVEL, DxL: 31.6x455mm

    Type: Dropper

    Pedals

    Alloy Flat, With Replaceable Pins

    Groupset
    Rear Derailleur

    SHIMANO XTR Di2 M9250

    Crank

    SHIMANO XTR M9200, 34T

    Shifters

    SHIMANO XTR Di2 M9250 I-SPEC EV, 1x12 SPEED

    Cassette

    SHIMANO XTR M9200, 10-51T

    Chain

    SHIMANO XTR M9100

    Brakes

    SHIMANO XTR M9200

    Type: Shimano XTR Hydraulic Disc

    Brake Levers

    SHIMANO XTR M9200

    Wheels
    Rims

    RACE FACE ERA CARBON 622-30 28H W/ TUBELESS READY RIM TAPE

    Spokes

    F: STAINLESS NDS:305mm DS:305mm W/ 12mm NIPPLE, R: STAINLESS NDS:301mm DS:305mm W/ 12mm NIPPLE

    Front Hub

    RACE FACE VAULT 415 THRU AXLE 15x110mm 28H CENTER-LOCK

    Rear Hub

    RACE FACE VAULT 424 THRU AXLE 12x148mm 28H CENTER-LOCK

    Tires

    MAXXIS REKON RACE 29"x2.35"

    Disc Rotors

    SHIMANO RT86, R:160mm / F:180mm
