Today’s Deals | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 27.2 lbs | |
Frame | ||
| Fox Rhythm Float 32 | ||
| Fox | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| Shimano XT Mechanical Disc | ||
| XT | ||
Drivetrain | 2 × 11 | |
Suspension | Full | |
Front Travel | 100mm | |
Rear Travel | 96mm | |
Brand Site | ||

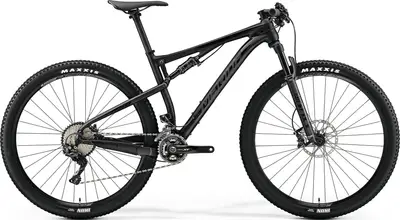

Summary | The Merida NINETY-SIX XT is a 29″ full suspension crosscountry bike with high-end components and shimano xt mechanical disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | NINETY-SIX CFA BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Fox Rhythm 32 Float, Air, 100mm suspension travel, Tapered, Remote lockout Travel: 100mm Spring Type: Air | |
Shock | FOX Performance Elite Float, remote lockout Travel: 96mm | |
Bottom Bracket | BSA, 73mm, threaded | |
Headset | FSA NO.55E, 2191018117 | |
Stem | Merida Expert CC, 31.8mm diameter, -17° stem angle | |
Handlebar | MERIDA Expert CC, 720mm width, flat | |
Saddle | Prologo Scratch | |
Seatpost | MERIDA Expert CC, 30.9mm diameter, 0mm setback, Carbon Type: Rigid | |
Pedals | None included | |
Grips | Merida Expert EC |
Rear Derailleur | Shimano XT Shadow+ | |
|---|---|---|
Front Derailleur | Shimano XT | |
Crank | Shimano XT, 34-24 teeth | |
Shifters | Shimano XT | |
Cassette | Shimano M7000, 11-42 teeth, 11 speed | |
Chain | KMC X11 | |
Chain Guide | N/A | |
Brakes | Shimano XT Type: Shimano XT Mechanical Disc | |
Brake Levers | Shimano XT |
Rims | MERIDA Expert CC, 22.8mm inner width | |
|---|---|---|
Spokes | Double Butted Black stainless | |
Front Hub | Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock | |
Rear Hub | Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock | |
Tires | Maxxis Ikon, 29x2.2", fold |
