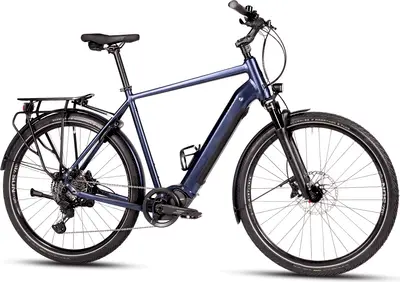

    Crossmaxx ELS2024 MAXX
    Recommended
    MSRP
    ($5,467)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    8.2
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		726Wh
    		XT
    Drivetrain
    		1 × 11
    Brand Site

    maxx.de

    Summary
    		The MAXX Crossmaxx ELS is a 29″ aluminum frame hybrid e-bike with high-end components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    35 mph

    Crossmaxx ELS

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Crossmaxx ELS2024 MAXX
    Frame

    Robust and stiff frame construction thanks to the Octatube (8-edged down tube) made of 6061-T6 aluminium MAXX Custom Tubing, 2-times powder-coated.

    Fork

    Rigid fork MAXX/Kinesis E-Type, 15 mm through axle, powdercoated in frame colour

    Headset

    Acros Block-Lock, tapered, w/ 150° steering angle limitation

    Stem

    MAXX 16° (8°/12° optional)

    Handlebar

    MAXX Comfort Rizer

    Saddle

    Ergon 'ST 10 Gel', black, 175 mm

    Seatpost

    MAXX Premium

    Type: Rigid

    Pedals

    MAXX Trekking GripLite

    Groupset
    Rear Derailleur

    Shimano XT RD M8130

    Crank

    Shimano SMCRME80 44 T, with double-chainguard

    Shifters

    Shimano XT SL M8130

    Cassette

    Shimano CS LG700 11-50 Z, 1 x 11

    Chain

    Shimano 11-fach CNHG601

    Brakes

    Shimano BR-MT402 4 piston - Disc 203/180 mm

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Newman Performance Strong 30, 29" black (30 mm, 32 L)

    Front Hub

    SunRingle SRC, through axle 15/100 mm

    Rear Hub

    SunRingle SRC Disc 6 H, Through Axle 12/142 mm

    Tires

    Schwalbe Big Ben w/reflex; 50-622

    Electric Components
    Motor

    Shimano EP600, 85 Nm, max. support 400%

    Battery

    726 Wh, incl. 4A charger

    Accessories
    Lights

    Carrier rear light B&M Dart E w/reflectors

    Fenders

    Mudguard SKS Bluemels 75 diffusion black

    Racks

    Carrier Racktime Stand it 2.0 Tour black

    Bell

    mini bell black
