Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices
Today’s Deals | Recommended |
|---|
MSRP | $3,599 | |
|---|---|---|
Where to Buy | $2,459 34% off At Jenson USA | |
Category | Trail, E-Bike | |
Frame | Aluminum | |
| RockShox Pike | ||
| RockShox Deluxe Select+ | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| Shimano Hydraulic Disc | ||
| Shimano 250W 85Nm mid-drive | ||
| 630Wh | ||
| Deore | ||
Drivetrain | 1 × 11 | |
Suspension | Full | |
Front Travel | 140mm | |
Rear Travel | 140mm | |
Brand Site | ||

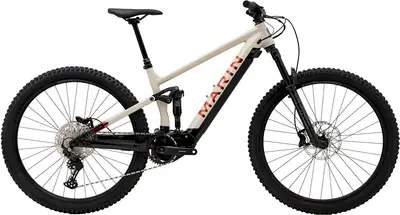

Summary | The Marin Rift Zone E1 is a 29″ aluminum frame full suspension trail e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Fork | RockShock Pike Base 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset Travel: 140mm Spring Type: Air | |
|---|---|---|
Shock | RockShox Deluxe Select+, Compression and Rebound Adjustment, 210x55, 25xM8 Lower and Upper Mount Travel: 140mm | |
Headset | FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” | |
Stem | Marin 3D Forged Alloy, 35mm | |
Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back | |
Saddle | Marin E-MTB Saddle | |
Seatpost | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm Type: Dropper | |
Pedals | Marin MTB Plastic | |
Grips | Marin Grizzly Lock-On |
Rear Derailleur | Shimano Deore, Direct Attachment, 11-Speed, SGS | |
|---|---|---|
Crank | Shimano EM600, 160mm Length | |
Shifters | Shimano Deore, 11-Speed, I Spec EV | |
Cassette | SunRace 11-Speed, 11-51T | |
Chain | KMC X-10E, Silver | |
Brakes | Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor Type: Shimano Hydraulic Disc | |
Brake Levers | Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible |
Rims | Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible | |
|---|---|---|
Spokes | 14g Black Stainless Steel | |
Front Hub | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H | |
Rear Hub | Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body | |
Tires | Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing |
Motor | Shimano EP6, 250W, 85Nm | |
|---|---|---|
Battery | BT-EN806, Internal 630Wh | |
Display | SC-E600 Display |
