    6555+E2024 KHS
    Recommended
    MSRP
    $6,799
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    5.8
    Frame
    		Aluminum
    		Fox Rhythm Float 36
    		Fox Float DPS Performance
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Shimano 250W 85Nm mid-drive
    		Shimano 630Wh
    		XT
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		150mm
    Brand Site

    khsbicycles.com

    Summary

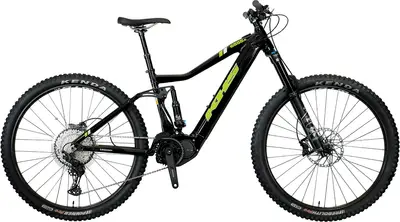

    		The KHS 6555+E is a 29″ aluminum frame full suspension enduro e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    6555+E

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    6555+E2024 KHS
    Frame

    4Bar Horst Link 150mm Plus, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, 1.5 Taper, 12x148mm Boost Rear Axle, w/Replaceable Derailleur Hanger

    Color: Black

    Fork

    FOX Float 36, 29 Std/27.5+ Evol Air, Rhythm, 160mm, Grip Sweep Adjust, Ext Rebound Adjust, 1-1/8~1.5 Taper, 15x110mm QR Boost

    Travel: 160mm

    Spring Type: Air

    Shock

    FOX Float DPS, Performance, 3-Pos, Evol w/LV Eyelet, 210x50

    Travel: 150mm

    Headset

    FSA Orbit 1.5E, Zero Stack, 1-1/8”~1.5

    Stem

    FSA Grid, Aluminum 3D Forged, Threadless 4-bolt, 35mm diameter M: 35mm, L-XL: 50mm

    Handlebar

    FSA Grid 1 Riser, 800 x 20mm, 35mm

    Saddle

    WTB Volt Sport, Medium

    Seatpost

    Kind Shock Rage-I, Integra w/Remote, Travel Adjust, 30.9mm, M:395x125, L-XL:440x150

    Type: Dropper

    Pedals

    n/a

    Grips

    Q2 Lock-on

    Groupset
    Rear Derailleur

    Shimano XT RD-M8100

    Front Derailleur

    n/a

    Crank

    Shimano FC-EM600 34T, S:160, M-XL:165

    Shifters

    Shimano XT, SL-M8100, 12-Speed, Trigger, Right Only

    Cassette

    Shimano CS-M7100, 10-51T, 12-Speed

    Chain

    Shimano CN-M7100

    Brakes

    Shimano MT420 4-Piston, Hydraulic Disc, Servo Wave, 203mm, Rotors= RT64 CenterLock

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano MT401, Servo Wave w/I-Spec II

    Wheels
    Rims

    WTB Scraper i30 TCS Aluminum Plus Disc, 29, Double Wall, 32H, Tubeless-Ready

    Spokes

    14G Stainless Black, 32x32

    Front Hub

    Shimano HB-M7110-B CenterLock Disc, 15x110mm Axle, Boost

    Rear Hub

    Shimano FH-M7110-B Disc Cassette, 12x148mm, Boost

    Tires

    Kenda Regolith Pro, 29 x 2.6”, FT: 120TPI Folding, Tubeless-Ready, RR: Pinner Pro 29x2.4

    Electric Components
    Motor

    Shimano EP-801 Motor, 36V x 250W, 85Nm, Class 1, 34T

    Battery

    Shimano Lithium 36V x 17.5Ah, 630Wh
