Bike Comparison
    RENEGADE S12020 Jamis
    Recommended
    RENEGADE S22023 Jamis
    MSRP
    		$2,799$2,499
    Where to Buy
    —
    $1

    At

    —
    $1

    At

    Category
    		GravelGravel
    Weight
    		21.8 lbs23.5 lbs
    5.7
    5.2
    Frame
    		SteelSteel
    Fork
    		CarbonCarbon
    Wheels
    		AluminumAluminum
    Wheel Size
    		700c700c
    Brakes
    		Hydraulic DiscHydraulic Disc
    Groupset
    		GRX 800GRX 800, GRX 600
    Drivetrain
    		1 × 111 × 11
    Brand Site

    jamisbikes.com

    jamisbikes.com

    Summary

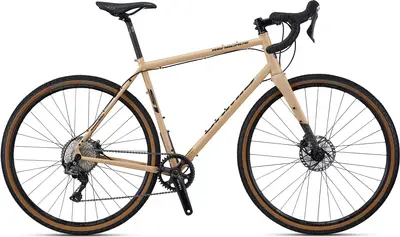

    		The Jamis RENEGADE S1 is a steel frame gravel bike with high-end components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    2020 RENEGADE S1
    2023 RENEGADE S2
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    2020 RENEGADE S1

    31 mph

    2023 RENEGADE S2

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    RENEGADE S12020 Jamis
    RENEGADE S22023 Jamis
    Frame

    UPDATED Jamis Size Specific Design frame geometry, Reynolds 631 double-butted chromoly main tubes, tapered head tube for tapered fork, oval seat stays, Di2 compatible threaded BB shell, 12x142 Jamis MTS (Modular Thru-axle System), 163x1.5x14, flat mount disc brake mounts, top tube mounted full cable housing, dropper post cable guides, 3 waterbottle mounts, TT mounts, rack and fender eyelets.

    BB Standard: BSA, 68mm, Threaded

    UPDATED Jamis Size Specific Design frame geometry, Reynolds 631 double-butted chromoly main tubes, tapered head tube for tapered fork, oval seat stays, Di2 compatible, threaded T47 BB shell, 12×142 Jamis MTS (Modular Thru- axle System), flat mount disc brake mounts, down tube mounted full cable housing, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets.

    BB Standard: BSA, 68mm, Threaded

    Fork

    Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System), 118x1.5x13, with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets

    UPDATED Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and 3 water bottle eyelets

    Bottom Bracket

    Shimano SM-BBR60

    FSA T47 or Praxis M30 T47 68 (External)

    Headset

    FSA IS2 sealed bearing Internal with 15.3mm top cone, 1.5 - 1 1/8”

    FSA IS2 sealed bearing Internal with 15.3mm top cone, 1.5 – 1 1/8”

    Stem

    Ritchey 4-Axis 3D forged 6061 alloy, 6˚ x 60mm (44), 70mm (48/51), 80mm (54/56), 100mm (58/61)

    Redshift suspension stem with elastomers, 6 ̊ x 80mm (48/51/54/56), 100mm (58/61)

    Handlebar

    Ritchey Ergomax Comp, 6061 aluminum, 73 reach, 128 ergonomic drop with 12° flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)

    Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)

    Saddle

    Fizik Aliante Delta with intergrated clip system and manganese rails

    Selle Royal Asphalt with integrated clip system

    Seatpost

    Jamis carbon fiber micro-adjust, 27.2 x 330mm with cromo seat pin

    Jamis carbon fiber micro-adjust, 27.2 x 330mm with cromo seat pin

    Pedals

    N/A

    N/A

    Grips

    Velo EVA gel with gel inserts

    Groupset
    Rear Derailleur

    Shimano GRX RD-RX812 Shadow Plus rear

    Shimano GRX RD-RX812 Shadow Plus

    Crank

    Shimano GRX FC-RX810 40T, 170mm (44/48/51), 172.5mm (54/56), 175mm (58/61)

    Shimano GRX FC-RX600 40T or PRAXIS ALBA-GR 40T 165mm(48), 170mm(51), 172.5mm(54/56), 175mm(61).

    Shifters

    Shimano GRX ST-RX810 Dual Control STI right, GRX ST-RX810 Dual Control STI Dropper post left, 22-speed.

    Shimano GRX ST-RX600 Dual Control STI, 11-speed.

    Cassette

    Shimano Deore XT 11-speed, 11-42T

    Shimano 11-speed, 11-42T

    Chain

    KMC x11 EPT Anti-Rust

    KMC x11 EPT Anti-Rust

    Brakes

    Shimano GRX BR-RX810 hydraulic disc brake with resin pads and Fin, Centerlock Ice Tech Freeza RT800 160mm rotors with GRX ST-RX810 Dual Control STI levers

    Shimano GRX BR-RX400 flat mount hydraulic disc brakes with resin pads, Shimano 160mm rotors with GRX ST- RX600 Dual Control STI levers

    Wheels
    Rims

    Stans Crest S1 Team Tubeless Centerlock 11-speed wheelset disc rims, 32H, 17.2mm rim height with 23mm ID width, Neo Centerlock sealed bearing hubs, Sapin stainless steel spokes and front 12mm/rear 12x142 thru-axle with Switch Lever

    Boyd GVL Tubeless 11-speed wheelset, Boyd 6-bolt hubs with sealed bearings, 14g black stainless steel spokes with front 12mm/rear 12×142 thru- axle with Switch Lever

    Tires

    Donnelly X Plor MSO, 650 x 36c (44-48) 700 x 40c (51-61), with protection belt and folding bead

    WTB Raddler 700Cx40C, Distance+ Compound, Supple Tubeless Casing, TCS Aramid Bead (48-61) WTB VENTURE 650Bx40C, Black Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead (44)
