MSRP | $575 | $329 |
---|---|---|
Where to Buy | — $1 At | $329 At Trek |
Category | Mountain Youth | Mountain Youth |
Weight | 20.3 lbs | |
Aluminum | Aluminum | |
Fork | Aluminum | Steel |
Wheels | Aluminum | Aluminum |
Wheel Size | 24″ | 20″ |
Brakes | Hydraulic Disc | Coaster |
Groupset | Altus | |
Drivetrain | 1 × 11 | |
Brand Site | ||

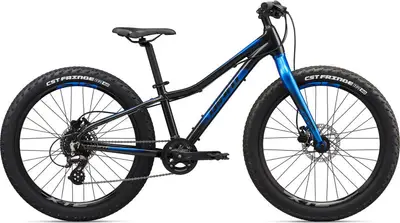

Summary | The Giant XTC Jr 24 + is a 24″ aluminum frame mountain youth bike with mid-range components and hydraulic disc brakes. |
Frame | ALUXX-Grade Aluminum Color: Gunmetal Black | Alpha Silver Aluminum, 20'' kids' frame size Color: Gunmetal Black |
---|---|---|
Fork | alloy | Kid's steel fork |
Shock | N/A | |
Bottom Bracket | cartridge | Square taper, 68mm, sealed cartridge |
Headset | Adjustable ball bearing, threadless | |
Stem | forged alloy Ahead, 8-degree | Bontrager Approved alloy, 25.4mm clamp, 15 degree rise, 60mm |
Handlebar | Giant Sport, alloy, 31.8 | Kids' steel, 25.4mm clamp, 40mm rise, 560mm width |
Saddle | Giant Grow Technology | Kids' padded, integrated seatpost, with handle |
Seatpost | alloy, single-bolt, 30.9x350 | |
Pedals | platform | Kids' Satellite, 9/16 thread |
Grips | Kids' grip, 107mm width |
Rear Derailleur | Shimano Altus | |
---|---|---|
Front Derailleur | N/A | |
Crank | alloy forged, 32t | ProWheel alloy, 32T steel ring w/double guard, 127mm length |
Shifters | Shimano Altus SL-M315 | |
Cassette | Shimano HG31, 11x34 | |
Chain | KMC Z7 | HV410, 1/2x1/8 |
Brakes | Shimano MT-200, hydraulic disc | Alloy linear-pull |
Brake Levers | Shimano | Kids', alloy |
Rims | alloy, 35mm width | Alloy 20'', 32-hole, schrader valve |
---|---|---|
Spokes | stainless, 14g | |
Front Hub | Giant Disc, 28h, 100/148, QR, alloy, disc | Steel, 100mm, nutted axle |
Rear Hub | Giant Disc, 28h, 100/148, QR, alloy, disc | Coaster brake, 19T, 110mm bolt-on |
Tires | CST C1918, 24x2.8 | Bontrager XR1, wire bead, 27 tpi. 20x2.25'' |
