MSRP | $2,799 | $4,199 |
|---|---|---|
Where to Buy | — $1 At | $4,199 At Canyon |
Category | Trail | Trail |
Weight | 34.9 lbs | |
| Aluminum | Carbon | |
Fork | DVO Diamond | Fox Performance Elite Float 36 |
Shock | Fox Float DPS Performance | Fox Float DHX Factory |
Wheels | Aluminum | Aluminum |
| 29″ | 29″ / 27.5″ | |
Brakes | Hydraulic Disc | Hydraulic Disc |
Groupset | GX Eagle, Truvativ Descendant | XT, SLX |
Drivetrain | 1 × 12 | 1 × 12 |
Suspension | Full | Full |
Front Travel | 140mm | 150mm |
Rear Travel | 130mm | 140mm |
Brand Site | ||

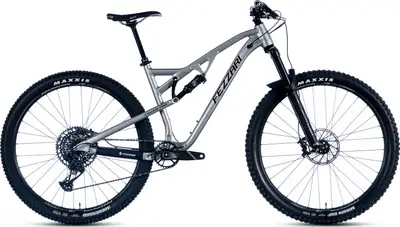

Summary | The Fezzari Cascade Peak is a 29″ aluminum frame full suspension trail bike with high-end components. | |
Based on frame geometry and build specs.
Frame | Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses BB Standard: BSA, 73mm, Threaded | Canyon Spectral CF, Full-carbon frame with optimised stiffness and compliance. Convertable wheelsize and geometry adjustment. Category 4 strength., Axle dimension: 12x148 mm, Material: Carbon (CF) BB Standard: BSA, 73mm, Threaded |
|---|---|---|
Fork | DVO Diamond D1, 140mm travel, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black Travel: 150mm Spring Type: Air | FOX 36 Performance Elite, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 5.18 lbs Travel: 150mm Spring Type: Air |
Shock | 2021 Fox Float DPS, Performance Series, 3 Position Lever with Evol SV aircan, matte black | FOX DHX Factory, Spring: 350 |
Bottom Bracket | SRAM DUB, English Thread | Shimano BSA BB52, Bottom bracket standard: BSA HT2 68/73, Weight: 0.22 lbs |
Headset | FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered | |
Stem | Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
Handlebar | Fezzari FRD Charger35, alloy, 35mm clamp, 760mm wide, 15mm riser, 9 degree bend | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
Saddle | WTB Volt Comp | Ergon SM10 Enduro Comp, Gender: Unisex, Weight: 0.58 lbs |
Seatpost | X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout) | Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 1.50 lbs |
Pedals | Available Separately | None included |
Grips | Canyon G5 |
Rear Derailleur | SRAM GX Eagle 1x12, X-HORIZON, 12-speed, Type-3 roller bearing clutch, long cage | Shimano DEORE XT M8100, Cage length: long, Weight: 0.63 lbs |
|---|---|---|
Front Derailleur | N/A | |
Crank | Truvativ Descendant DUB 6K Aluminum Eagle Crankset | Shimano SLX M7120, Number of chainrings: 1 |
Shifters | SRAM GX Eagle Trigger 12-speed | Shimano DEORE XT M8100, Weight: 0.29 lbs |
Cassette | SRAM XG-1275 GX Eagle, 10-52t, 12-speed | Shimano SLX M7100, Number of sprockets: 12 |
Chain | SRAM GX Eagle 12-speed | Shimano CN-M6100 |
Chain Guide | Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02 | |
Brakes | SRAM G2 R Hydraulic Disc, SRAM Centerline Rotors, 180mm/160mm F/R | Shimano DEORE XT M8120, Number of pistons: 4 |
Brake Levers | SRAM G2 R |
Rims | Stans Flow 29er S1, Tubeless Ready, 32 hole or WTB i35 27.5+ | DT Swiss E1900, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 2.47 lbs | DT Swiss E1900, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 2.21 lbs |
|---|---|---|
Spokes | 1.8mm (15g) black stainless, brass nipples | |
Front Hub | Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm, XD Driver | |
Rear Hub | Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm, XD Driver | |
Tires | Maxxis Minion DHF 29x2.5WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60TPI | Maxxis Assegai, Width: 2.5", Weight: 2.25 lbs | Maxxis Minion DHR II Exo+, Width: 2,4", Weight: 2.38 lbs |
Disc Rotors | Shimano SM-RT76, Size: 203 mm, Weight: 0.42 lbs |
