Bike Comparison
    Z52014 Felt
    Recommended
    MSRP
    $1,699
    Where to Buy
    —
    $1

    At

    Category
    		Race
    Weight
    		18.0 lbs
    4.5
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Rim
    		105
    Drivetrain
    		2 × 10
    Brand Site
    Summary

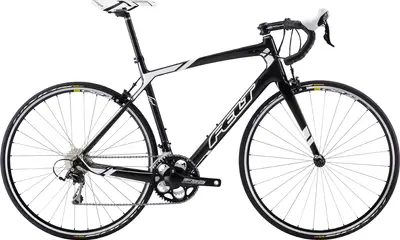

    		The Felt Z5 is a carbon frame race bike with upper mid-range components and rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Z5
    Other Race bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    39 mph

    Z5

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Z52014 Felt
    Frame

    Felt Endurance Road UHC Performance carbon fiber, MMC w/ InsideOut construction, BB30 & dropouts, replaceable rear derailleur hanger, electronic-compatible internal cable routing

    BB Standard: BB30, Press Fit

    Fork

    Felt Endurance Road UHC Performance carbon fiber blades & dropouts w/ ControlTaper 1.125" - 1.5" aluminum steerer tube

    Shock

    n/a

    Bottom Bracket

    FSA BB30

    Headset

    FSA NO.42 integrated, 1.125" - 1.5" sealed cartridge bearing w/ aluminum 15mm cone spacer, 2 x 10mm + 1 x 5mm PC headset spacers & Felt integrated top cap

    Stem

    Felt VariableAngle, +/- 8°/16° rise, Ø31.8mm 51cm = 80mm 54cm = 90mm 56cm = 100mm 58 - 61cm = 110mm

    Handlebar

    Felt SuperLite Road VariableShape, 71mm reach, 118mm drop, Ø31.8mm 51cm = 400mm 54cm = 420mm 56 - 61cm = 440mm

    Saddle

    Prologo Kappa T2.0

    Seatpost

    Felt Endurance Road UHC Performance carbon fiber, Ø27.2mm, 330mm length

    Type: Rigid

    Pedals

    n/a

    Grips

    Felt SuperGel Tape

    Groupset
    Rear Derailleur

    Shimano 105 long cage

    Front Derailleur

    Shimano 105 braze-on

    Crank

    FSA Omega BB30 51cm = 170mm 54 - 56cm = 172.5mm 58 - 61cm = 175mm

    Shifters

    Shimano 105 STI

    Cassette

    Shimano,11-32T

    Chain

    Shimano 10-speed

    Chain Guide

    n/a

    Brakes

    Dual pivot caliper

    Type: Rim

    Brake Levers

    Shimano 105 STI

    Wheels
    Rims

    MAVIC CXP-22

    Spokes

    2.0mm stainless steel

    Front Hub

    Felt R3, sealed bearing, 24H

    Rear Hub

    Felt R3, sealed bearing, 28H, 10-speed

    Tires

    MAVIC Aksion, 700 x 25c

    Accessories
    Fenders

    n/a
