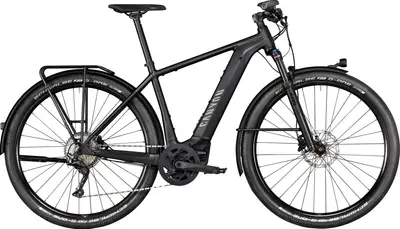

    Pathlite:ON 7.02020 Canyon
    Recommended
    MSRP
    ($3,722)
    Where to Buy
    —
    $1

    At

    Category
    		Fitness, E-Bike
    Weight
    		53.0 lbs
    5.7
    Frame
    		Aluminum
    		Suntour XCR
    Wheels
    		Aluminum
    Wheel Size
    		27.5″ / 29″
    		Shimano Hydraulic Disc
    		Bosch 600W 75Nm mid-drive
    		Bosch 500Wh
    		XT, SLX
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    canyon.com

    Summary
    		The Canyon Pathlite:ON 7.0 is a 27.5″ / 29″ aluminum frame fitness e-bike with upper mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Pathlite:ON 7.0
    Other Fitness bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    33 mph

    Pathlite:ON 7.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Pathlite:ON 7.02020 Canyon
    Frame

    Canyon Pathlite:ON, Material: Aluminium, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180, Interface: 40 mm Kickstand Mount

    Fork

    SR Suntour XCR34

    Travel: 100mm

    Saddle

    Fizik Essenza

    Seatpost

    Iridium

    Type: Rigid

    Grips

    Ergon GS2

    Groupset
    Rear Derailleur

    Shimano Deore XT M8000 SGS

    Crank

    FSA CK-220 GEN4 ISIS

    Shifters

    Shimano SLX M7000 11s

    Cassette

    Shimano SLX M7000 11-42 11s

    Chain

    KMC X11-93

    Brakes

    Shimano MT401

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Alexrims MD25 | Shimano MT400 | Alexrims MD25 | Shimano MT400 SH11

    Tires

    Schwalbe G-One Allround 57 mm

    Disc Rotors

    Shimano RT54 | Shimano EM300, Disc Mount: Centerlock

    Electric Components
    Motor

    Bosch Performance Line CX (Gen4)

    Battery

    Bosch PowerTube 500 Wh

    Display

    Bosch Purion

    Charger

    Bosch Compact 2A

    Accessories
    Lights

    Supernova Mini 2 Pro High Beam | Supernova Universal Fender Tail Light

    Fenders

    Fender Set 68 mm

    Racks

    EP1043-01 Canyon Rack w. Ortlieb QL3.1
