MSRP | ($3,185) | $3,499 |
---|---|---|
Where to Buy | — $1 At | |
Category | Endurance | Endurance |
Weight | 19.4 lbs | 19.7 lbs |
Carbon | Carbon | |
Fork | Carbon | Carbon |
Wheels | Aluminum | Aluminum |
Wheel Size | 700c | 700c |
Clearance | 33c | 38c |
Brakes | Hydraulic Disc | Hydraulic Disc |
Groupset | 105, Shimano | 105 |
Drivetrain | 2 × 11 | |
Brand Site | ||

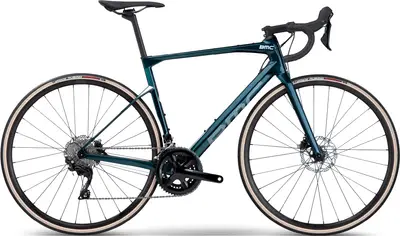

Summary | The BMC Roadmachine SEVEN is a carbon frame endurance bike with upper mid-range components and hydraulic disc brakes. |
Based on frame geometry and build specs.
Frame | Roadmachine Premium Carbon with Tuned Compliance Concept Endurance, Internal Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle BB Standard: BB86/BB92, Press Fit Tire Clearance: 33c Color: Petrol White | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle BB Standard: BB86/BB92, Press Fit Tire Clearance: 33c Color: Petrol White |
---|---|---|
Fork | Roadmachine Premium Carbon with Tuned Compliance Concept Endurance, Internal Cable Routing, Flat Mount Disc, 12x100mm Thru-Axle, 50mm Offset (Size 47-51) 45mm Offset (Size 54-61) | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Bottom Bracket | BB86/BB92, press-fit | Praxis, T47 threaded, internal bearing |
Stem | BMC RSM01 | Size: 44, Trek RCS Pro, -7 degree, 60mm length; Size: 47, Trek RCS Pro, -7 degree, 70mm length; Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length |
Handlebar | BMC RAB 03 Ergo Top Shape Compact Bend | Size: 44, 47, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width; Size: 50, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width |
Saddle | Selle Royal | Size: 44, 47, 50, 52, Bontrager Verse Short Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Short Comp, steel rails, 145mm width |
Seatpost | Roadmachine Premium Carbon D-Shaped Seatpost, 15mm Offset | Size: 44, 47, 50, 52, 54, 56, KVF aero carbon seatpost, 20mm offset, 280mm length; Size: 58, 60, 62, KVF aero carbon seatpost, 20mm offset, 320mm length |
Rear Derailleur | SHIMANO 105 | Shimano 105 R7000, long cage, 34T max cog |
---|---|---|
Front Derailleur | Shimano 105 R7000, braze-on | |
Crank | SHIMANO FC-RS510 | Size: 44, 47, Shimano 105 R7000, 50/34 (compact), 165mm length; Size: 50, 52, Shimano 105 R7000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano 105 R7000, 50/34 (compact), 172.5mm length; Size: 58, 60, 62, Shimano 105 R7000, 50/34 (compact), 175mm length |
Shifters | SHIMANO 105 | Size: 44, 47, 50, 52, Shimano 105 R7025, short-reach lever, 11 speed; Size: 54, 56, 58, 60, 62, Shimano 105 R7020, 11 speed |
Cassette | SHIMANO 105 11-32T | Shimano 105 HG700-11, 11-34, 11 speed |
Chain | SHIMANO 105 | Shimano 105 HG601, 11 speed |
Brakes | SHIMANO 105 RT54 Rotors (160/160) | Shimano 105 hydraulic disc, flat mount |
Rims | PRD23 23mm | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
---|---|---|
Spokes | 14 g stainless steel, black | |
Front Hub | CL-712 (F)/RXC-1425 (R) Thru Axle | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
Rear Hub | CL-712 (F)/RXC-1425 (R) Thru Axle | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
Tires | VITTORIA RUBINO 28mm | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
Disc Rotors | Shimano RT70, centerlock, 160mm |
