Today’s Deals2025 Schindelhauer

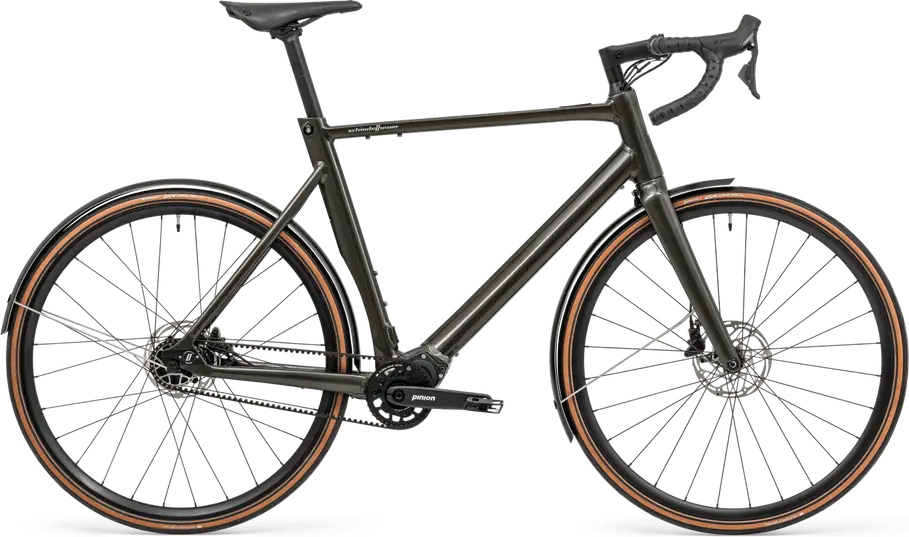

Arthur IX Ultimate
A 700c aluminum frame commuter e-bike with modest components and trp mechanical disc brakes.
Compare the full range
| Weight | 35.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 700c Aluminum |
| Drivetrain | Internally Geared Hub |
| Groupset | Pinion |
| Motor | MAHLE 275W 65Nm hub-drive |
| Battery | MAHLE 250Wh |
| Brakes | TRP Mechanical Disc |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated motor connection, integrated seat post clamp, smooth welded, internal cable routing BB Standard: Pinion, Press Fit Color: Jade Green |
|---|---|
| Fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
| Bottom Bracket | Pinion |
| Headset | Acros - ICR 1,5'' |
| Stem | Satori – Stealth, aluminium |
| Handlebar | LightSKIN – H1 dropbar with integrated LED-front-light |
| Saddle | Brooks – Cambium C15 |
| Seatpost | LightSKIN – seat post integrated LED-rear-light Type: Rigid |
| Pedals | Schindelhauer – Urban Pedal, aluminium, CNC machined |
| Grips | Brooks - Cambium bartape |
| Crank | Pinion |
|---|---|
| Shifters | Pinion C-Line gear box 9-speed (XR) / Smart.Shift |
| Brakes | TRP - HYWIRE Disc brake with integrated electronic shifter, 160mm Type: TRP Mechanical Disc |
| Rims | Schindelhauer – straight-pull front hub disc, Mahle - X20 motor, Kinlin - TL23R, Sapim – Race spokes, 3-cross and 2-cross laced |
|---|---|
| Tires | Continental – GP Urban Classic 35-622 |
| Motor | Mahle X20 – Hub Drive, 275 W Power, 65 Nm, 12 mm ThroughAxle |
|---|---|
| Battery | Mahle X20 – Intube Akku 250 Wh capacity |
| Display | Mahle X20 - Head Unit in top tube, with Bluetooth und ANT+, MAHLE x PINION Smart.Shift Integration |
| Charger | Original charger for the MAHLE X35 models. |
| Fenders | Curana - CLite |
|---|---|
| Racks | rear pannier rack mounting possible |
First added April 12
Last updated June 8
