2018 Raleigh
Tokul iE eMTB

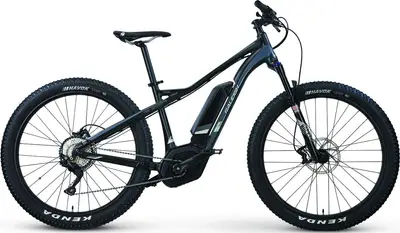

A 27.5″ aluminum frame hardtail trail e-bike with upper mid-range components.
| MSRP | $3,749 |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | RockShox Judy |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 250W 75Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Hydroformed Aluminum Alloy 6061 T6, Trail Performance Geometry BB Standard: Bosch, Press Fit |
|---|---|
| Fork | Rock Shox Judy Gold 120mm 27.5+ Travel: 120mm Spring Type: Coil |
| Bottom Bracket | Bosch, press-fit |
| Headset | Integrated, Sealed Bearing |
| Stem | Raleigh Aluminum Alloy, 3d forged |
| Handlebar | Raleigh Aluminum Alloy |
| Saddle | Raleigh Custom Ergo Performance |
| Seatpost | Raleigh Aluminum Alloy, forged head Type: Rigid |
| Pedals | Alloy, sealed bearing |
| Grips | Raleigh Ergo Comfort Control |
| Rear Derailleur | Shimano Deore M6000, SGS, Shadow Plus |
|---|---|
| Crank | Forged Alloy for Bosch System |
| Shifters | Shimano Deore M610, 10 Speed |
| Cassette | Forged Spider, 18tooth w/ chainguard, steel |
| Chain | KMC x10ePT Ebike Specific |
| Brakes | Hydraulic Disc Type: Hydraulic Disc |
| Brake Levers | Tektro M735 2 Finger |
| Rims | 27.5", 45mm ID, Disc Specific |
|---|---|
| Spokes | Stainless |
| Front Hub | Formula, Sealed Bearing, Thru Axle, Boost 110 |
| Rear Hub | Formula, Sealed Bearing, Thru Axle, Boost 148 |
| Tires | 27.5"X2.8" Kenda Havoc |
| Motor | Bosch Performance CX, 250W, 20MPH, Made in EU. |
|---|---|
| Battery | Bosch Powerpack 400Wh, DT Mount. |
| Display | Bosch Purion, Compact Type |
Last updated November 13
Not listed for 940 days
