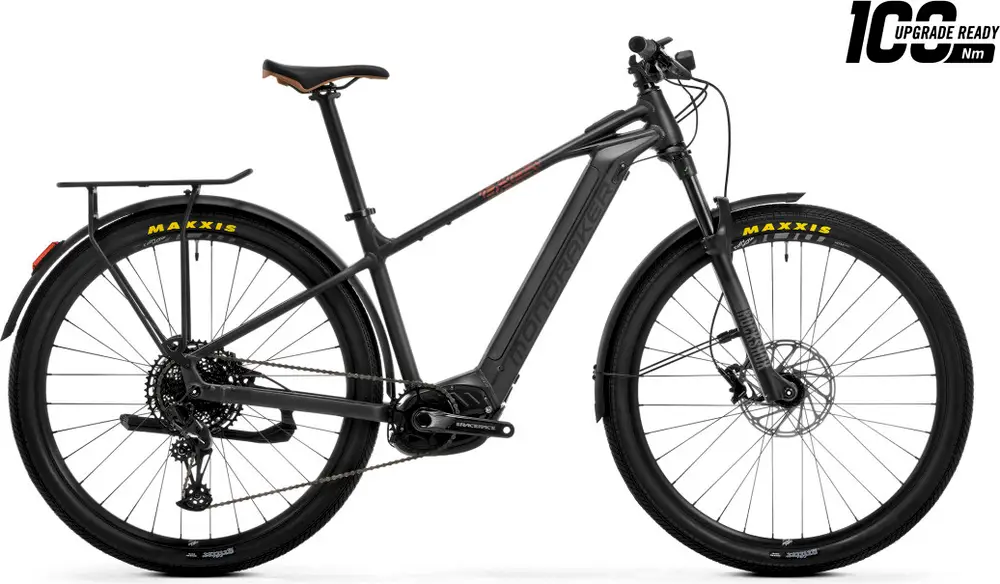

Today’s Deals2024 Mondraker
PRIME X
A 29″ aluminum frame commuter e-bike with upper mid-range components and sram level t hydraulic disc brakes.
Compare the full range
| Weight | 53.6 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | RockShox Recon Silver RL |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | SX Eagle |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | SRAM Level T Hydraulic Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor Hanger Standard: UDH Colors: Grey Bunker / Red/grey Vortex; Gray / Green |
|---|---|
| Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload Travel: 120mm Spring Type: Air |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| Stem | MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Saddle | MDK urban |
| Seatpost | Onoff S3 0-R, diameter 31.6mm, length 400mm Type: Rigid |
| Pedals | Urban pedal resin black |
| Grips | Onoff Beehive, 1lock-on, 135mm |
| Rear Derailleur | SRAM SX Eagle,12s |
|---|---|
| Crank | Race Face Aeffect-R ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: SRAM Level T Hydraulic Disc |
| Brake Levers | SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub |
| Tires | Front: Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead,, Rear: Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, |
| Motor | New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
|---|---|
| Battery | Bosch Powertube 625Wh |
| Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
