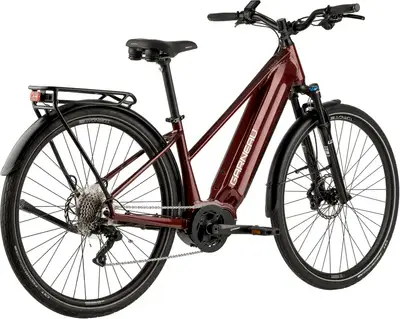

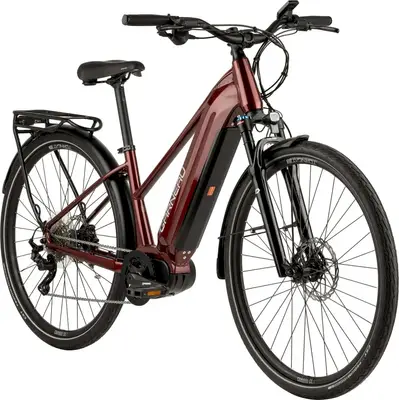

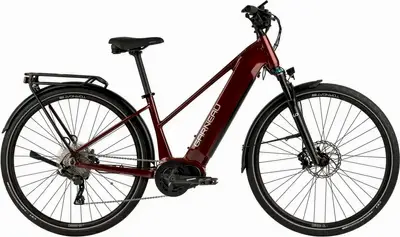

2023 Garneau
E-Espace P Max St

A 700c aluminum frame hybrid e-bike with mid-range components and hydraulic disc brakes.
Compare the full range

Manufacturer Price

CA$3,799($2,736)

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

E-Espace P Max St

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full E-Espace model range

Geometry

Specs

Build

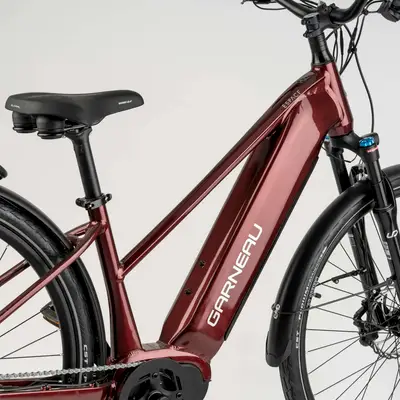

Frame	Frame E-Espace low step, mid-drive, hydroform S-6 LT aluminum, integreated battery, disc Color: Red

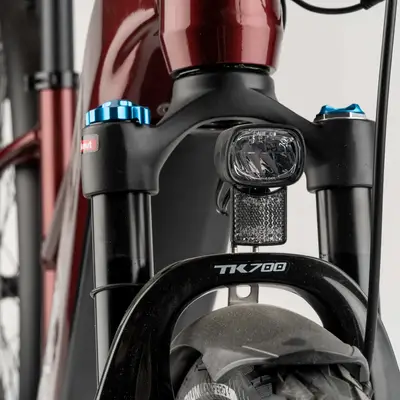

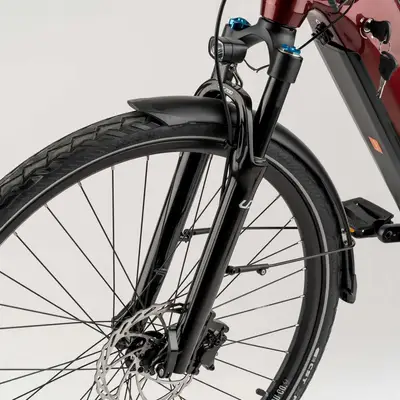

Fork	UD TK700 Pro air, travel 100 mm Travel: 100mm Spring Type: Air
Bottom Bracket	Incorporated with motor
Headset	ZS44/28.6 \| ZS44/30.0, 1 1/8''
Stem	Caribou co. alloy, 45mm, 17˚
Handlebar	Caribou Panache 2, 75 mm riser, Ø31.8 mm
Saddle	Selle Royal Essenza Relaxed
Seatpost	Caribou Panache 2, Ø30,9 mm Type: Rigid
Pedals	Platform
Grips	Velo Ergo, lock-on

Groupset

Rear Derailleur	Microshift Advent, w/clutch, 9-speed
Crank	Prowheel, Narrow Wide 38T
Shifters	Microshift xpress plus
Cassette	Sugek, 11-36T, 9-speed
Chain	KMC X9ES EPT, Anti-rust
Brakes	Jieke Y-5, hydraulic disc Type: Hydraulic Disc
Brake Levers	jieke Y-5, w/sensor control

Wheels

Rims	Torngat D21-700, 36h
Spokes	14g, stainless steel
Front Hub	Formula, disc, QR 9 x 100 mm
Rear Hub	Formula, disc, cassette, QR 10 x 135 mm
Tires	CST Xpedium ampero, reflective, 700 x 45c
Disc Rotors	6 bolts, 180/160 mm

Electric Components

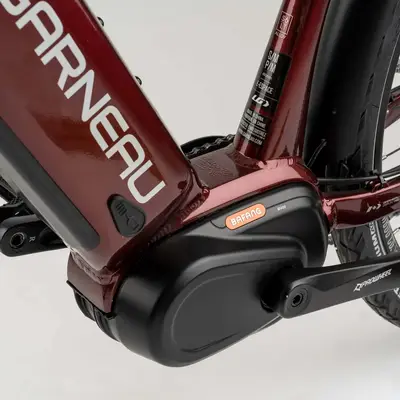

Motor	Bafang M400 mid-drive, 36V/350W, 80Nm, 32 km/h
Battery	Bafang 36V/ 17.8Ah (640Wh) integrated, smart BMS, 32km/h
Display	Bafang 36V matrix, bafang go connectable

Rider Notes

Riders Also Viewed

First added May 18

Last updated July 13

Not listed for 330 days

2023 GarneauE-Espace P Max St
