Black / Grey

SRAM Guide T, 4-piston brakes, rotors front 203mm/rear 203mm

Marzocchi Z1 27.5" Grip, Boost, travel 180mm, axle 15mm, 1.5 tapered

matt Black/Grey, AL 6061-T6, travel 180mm

Dartmoor Reel Boost 148x12mm, 32H, Shimano HG freehub

X-Fusion H3C HLR, 225x75mm, coil 400 (M) / 500 (L)

Microshift Advent Trail Pro M9295-R, 9–speed

Front: Vee Tire Flow Snap 27.5x2.6, Wire, MPC, Rear: Vee Tire Flow Snap 27.5x2.6, Wire, MPC

This bike can give you more fun in the bikeparks than you could ever imagine, won’t kill your budget, and let you save some cash for the bikepark lifts. With a 180mm travel legendary Marzocchi Z1 front suspension, and X-Fusion H3C HLR coil shock, you can focus only on riding, and let the rest vanish.
MAIN FEATURES
180/180mm front/rear suspension travel
Super solid Dartmoor Thunderbird aluminum frame with 180mm travel, boost rear end, and SRAM UDH hanger
1.8" tapered head tube with 60mm bottom headset bearing to take safely huge drops and long gaps

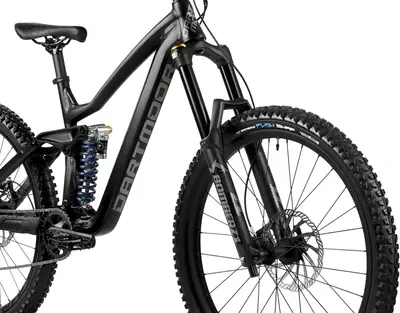

Legendary Marzocchi Z! 180mm travel fork, with 36mm upper legs and Grip damper

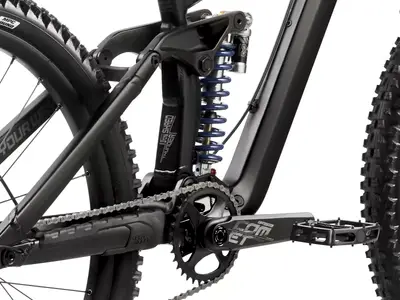

X-Fusion H3C HLR shock with 400 lbs coil rate
Strong FSA Comet Heavy Duty MTB crankset

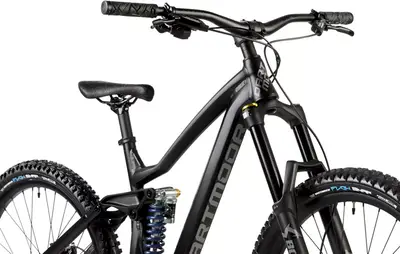

Oversized 35mm cockpit with 810mm wide Viper handlebar and short Viper stem

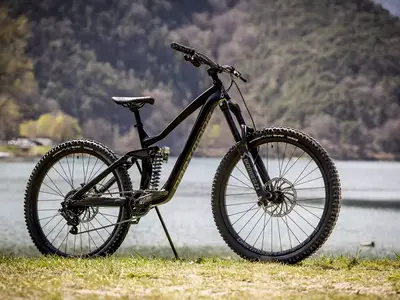

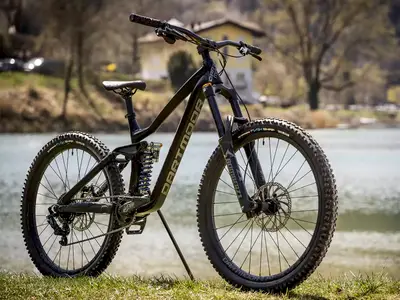

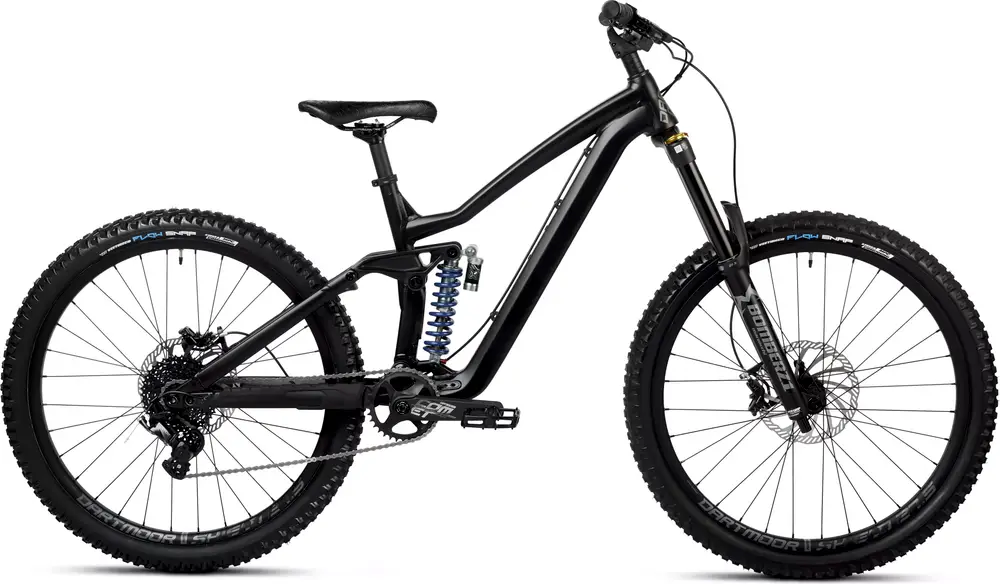

Dartmoor THUNDERBIRD FR EVO

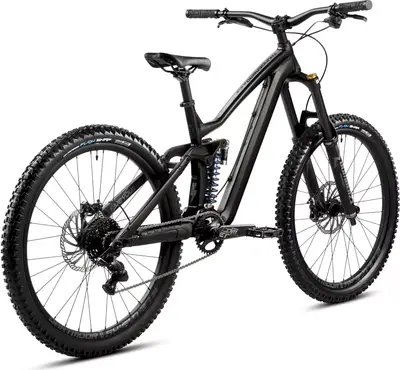

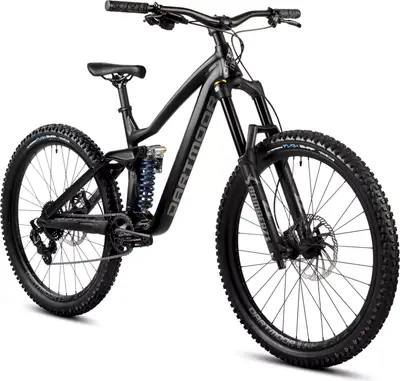

A 27.5″ aluminum frame full suspension downhill bike with mid-range components.

Weight	38.8 lbs
Frame	Aluminum
Suspension	Full, 180 / 180mm
Fork	Marzocchi Bomber Z1
Shock	X-Fusion
Wheels	27.5″ Aluminum
Drivetrain	1 × 9
Groupset	microSHIFT Advent
Brakes	SRAM Guide T Hydraulic Disc

Frame	matt Black/Grey, AL 6061-T6, travel 180mm Hanger Standard: UDH Color: Black / Grey
Fork	Marzocchi Z1 27.5" Grip, Boost, travel 180mm, axle 15mm, 1.5 tapered Travel: 180mm Spring Type: Air
Shock	X-Fusion H3C HLR, 225x75mm, coil 400 (M) / 500 (L) Travel: 180mm
Stem	Dartmoor Viper, Ø35mm
Handlebar	Dartmoor Viper 35, 810mm, Ø35mm
Saddle	Dartmoor Trail V.2
Seatpost	alu 6061, 30.9x350mm Type: Rigid
Pedals	Dartmoor Vibe
Grips	Dartmoor Roots

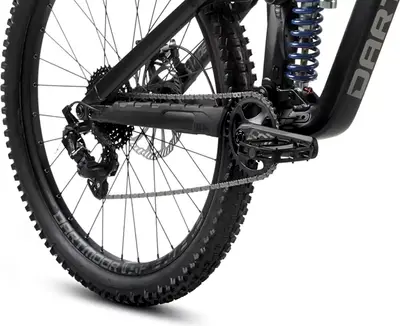

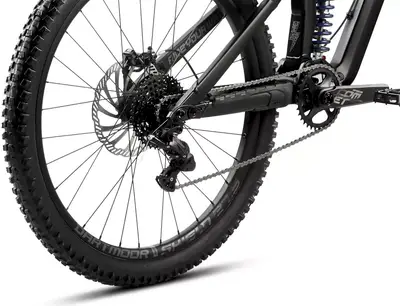

Rear Derailleur	Microshift RD-M6195S (Short Cage) 1x9
Crank	FSA Comet Heavy Duty 170mm
Shifters	Microshift Advent Trail Pro M9295-R, 9–speed
Cassette	Microshift CS-H093, 11-38T
Chain	KMC Z9
Brakes	SRAM Guide T, 4-piston brakes, rotors front 203mm/rear 203mm Type: SRAM Guide T Hydraulic Disc

Rims	Dartmoor Shield 27.5", 32H, F/V
Front Hub	Dartmoor Reel Boost 110x15mm, 32H
Rear Hub	Dartmoor Reel Boost 148x12mm, 32H, Shimano HG freehub
Tires	Front: Vee Tire Flow Snap 27.5x2.6, Wire, MPC, Rear: Vee Tire Flow Snap 27.5x2.6, Wire, MPC
