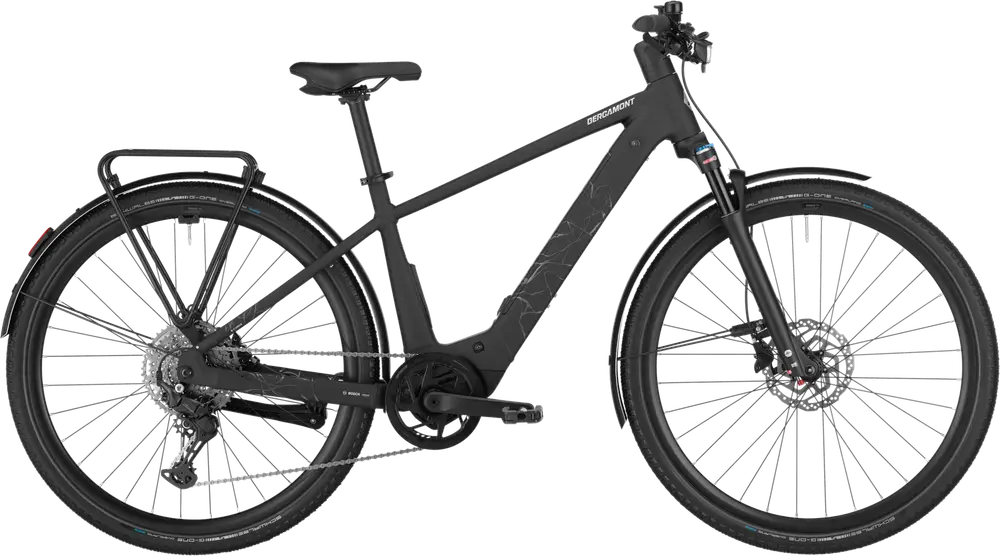

Today’s Deals2026 Bergamont
Helix 20
A 700c aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range
Manufacturer Price
£3,199($4,304)| Weight | 48.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 75mm |
| Fork | Suntour NRX |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | CUES |
| Motor | Bosch 250W 55Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Helix model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | 28", ultra lite AL-6061 tubing, CompactTube battery BB Standard: Bosch, Press Fit |
|---|---|
| Fork | Suntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle Travel: 75mm Spring Type: Air |
| Bottom Bracket | Bosch, Isis |
| Headset | Acros, A-Headset, semi-integrated, tapered, with integrated cable routing |
| Stem | Syncros Urban Combo, length: 70 mm |
| Handlebar | Syncros Urban Combo, width: 680 mm |
| Saddle | Syncros Capilano Trekking Memory Foam |
| Seatpost | BGM Pro Type: Rigid |
| Pedals | Marwi SP-827, sandblock |
| Grips | Syncros Urban, Ergo, double density, lock-on |
| Rear Derailleur | Shimano Cues, RD-U6000, Shadow Plus |
|---|---|
| Crank | FSA CK-220, 170 mm, 42t |
| Shifters | Shimano Cues, SL-U6000, 1x10-speed, rapidfire plus-shifter |
| Cassette | Shimano Cues, CS-LG400-10, 11-48t |
| Chain | Shimano Linkglide, CN-LG500 |
| Brakes | Shimano BR-MT200, hydraulic disc brake Type: Shimano Hydraulic Disc |
| Brake Levers | Shimano BL-MT200, hydraulic disc brake |
| Rims | BGM Pro X15, disc, eyelets |
|---|---|
| Spokes | stainless, black |
| Front Hub | Shimano HB-TC500, centerlock, disc, 15x100 mm axle |
| Rear Hub | Shimano FH-TC500, centerlock, disc, 12x142 mm axle |
| Tires | Front: Schwalbe G-One Overland 365, Performance, RaceGuard, reflective stripe, 50-622 Tube: Schwalbe SV19B Light, Rear: Schwalbe G-One Overland 365, Performance, RaceGuard, reflective stripe, 50-622 Tube: Schwalbe SV19B Light |
| Disc Rotors | Shimano SM-RT10, 180 mm |
| Motor | Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h |
|---|---|
| Battery | Bosch CompactTube, 36 V Li Ion, 400 Wh |
| Display | Bosch Purion 200 |
| Charger | Bosch Compact Charger, 2A |
| Lights | Front: B&M Briq-S, 60 Lux, LED Rear: Supernova, LED |
|---|---|
| Fenders | Curana C-Lite, with stainless stays |
| Racks | Racktime / BGM Allroad carrier, Snapit 2.0 System |
First added March 21
Last updated June 7
